基于有机硅氧烷交联结构的无氟耐磨疏水涂层的研究
Research on Fluorine Free Wear Resistant and Hydrophobic Coating Based on Organosiloxane Crosslinked Structure
DOI: 10.12677/ms.2025.154058, PDF,    科研立项经费支持
作者: 柯锦城, 刘善堂*：武汉工程大学化学与环境工程学院，湖北 武汉
关键词: 疏水；耐磨；无氟；绿色环保；聚二甲基硅氧烷；Hydrophobic； Wear-Resistant； Fluorine Free； Environmentally Friendly； Polydimethylsiloxane
摘要: 本文报道了一种新型疏水涂层的制备方法，该涂层通过端乙烯基聚二甲基硅氧烷(Vi-PDMS)与聚(二甲基硅氧烷-co-甲基氢硅氧烷) (PMHS)之间的硅氢加成反应形成具有稳定三维交联结构的涂层。通过傅立叶变换红外光谱(FTIR)、扫描电子显微镜(SEM)和紫外可见分光光度计(UV-Vis)等多种表征技术，详细分析了涂层的物理化学性质。FTIR结果表明，反应前后化学基团的变化证实了硅氢加成反应的成功发生。涂层在最佳条件下的水接触角(WCA)达到115.56˚，表现出良好的疏水性。进一步，通过漆膜磨耗仪测试了涂层的耐磨性能，结果表明，在CS-10F砂轮和500 g负载下，涂层能够承受1400转的磨损，显示出优异的耐磨性。此外，对涂层的化学稳定性、附着力及耐高温性能进行了评估，结果表明该涂层具备较好的综合性能。所制备的涂层不含氟，具有较强的耐磨性、绿色环保及简便的制备工艺，展现了广泛的应用潜力。

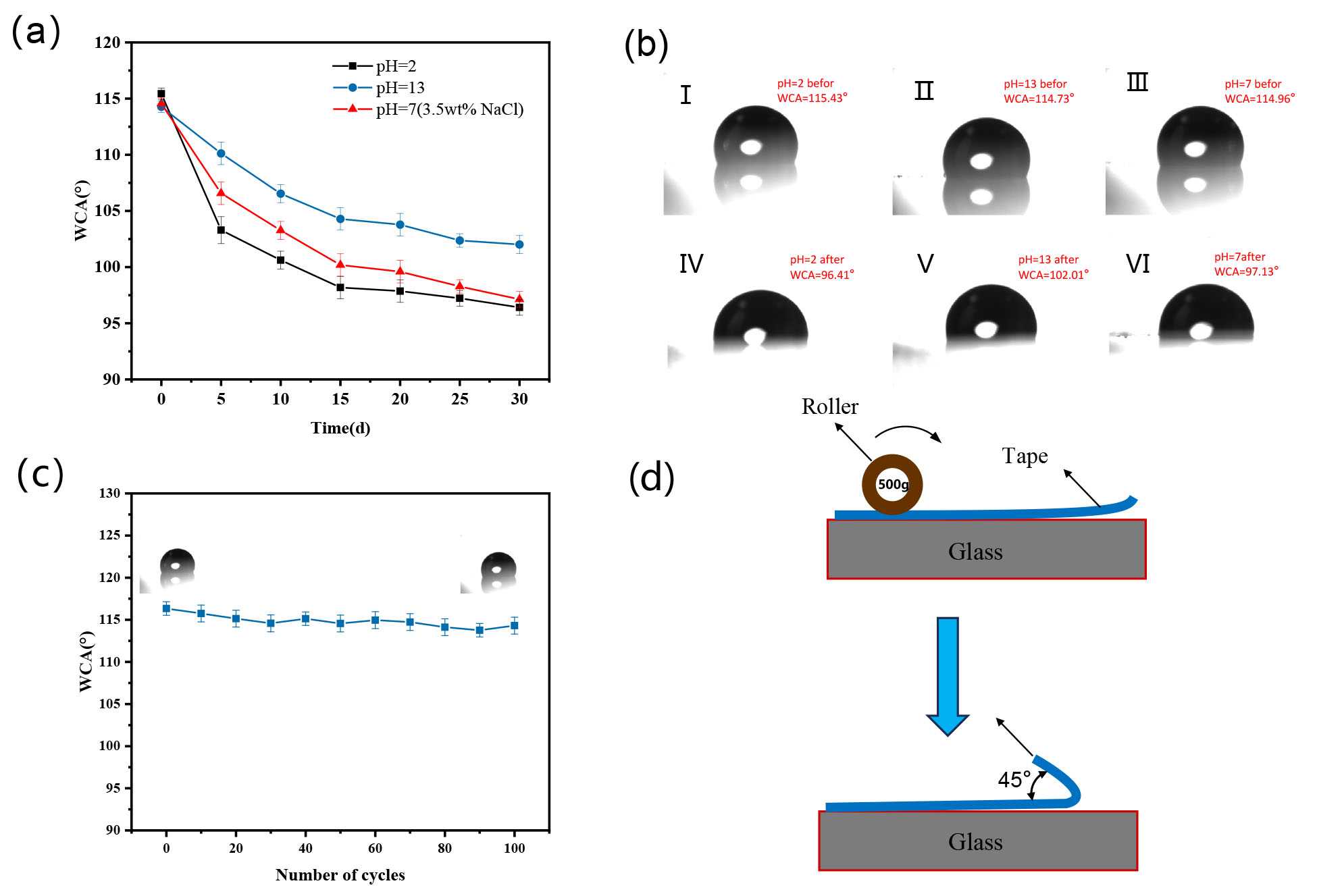

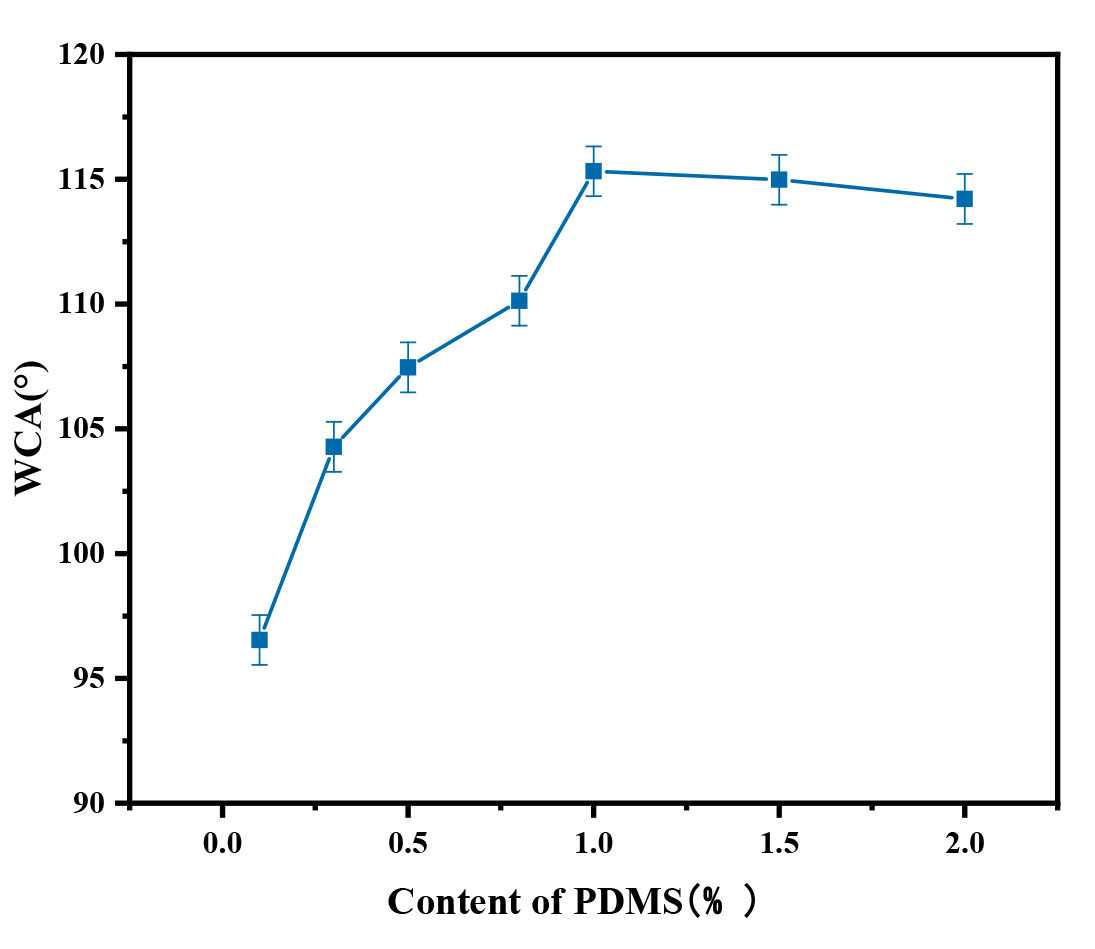

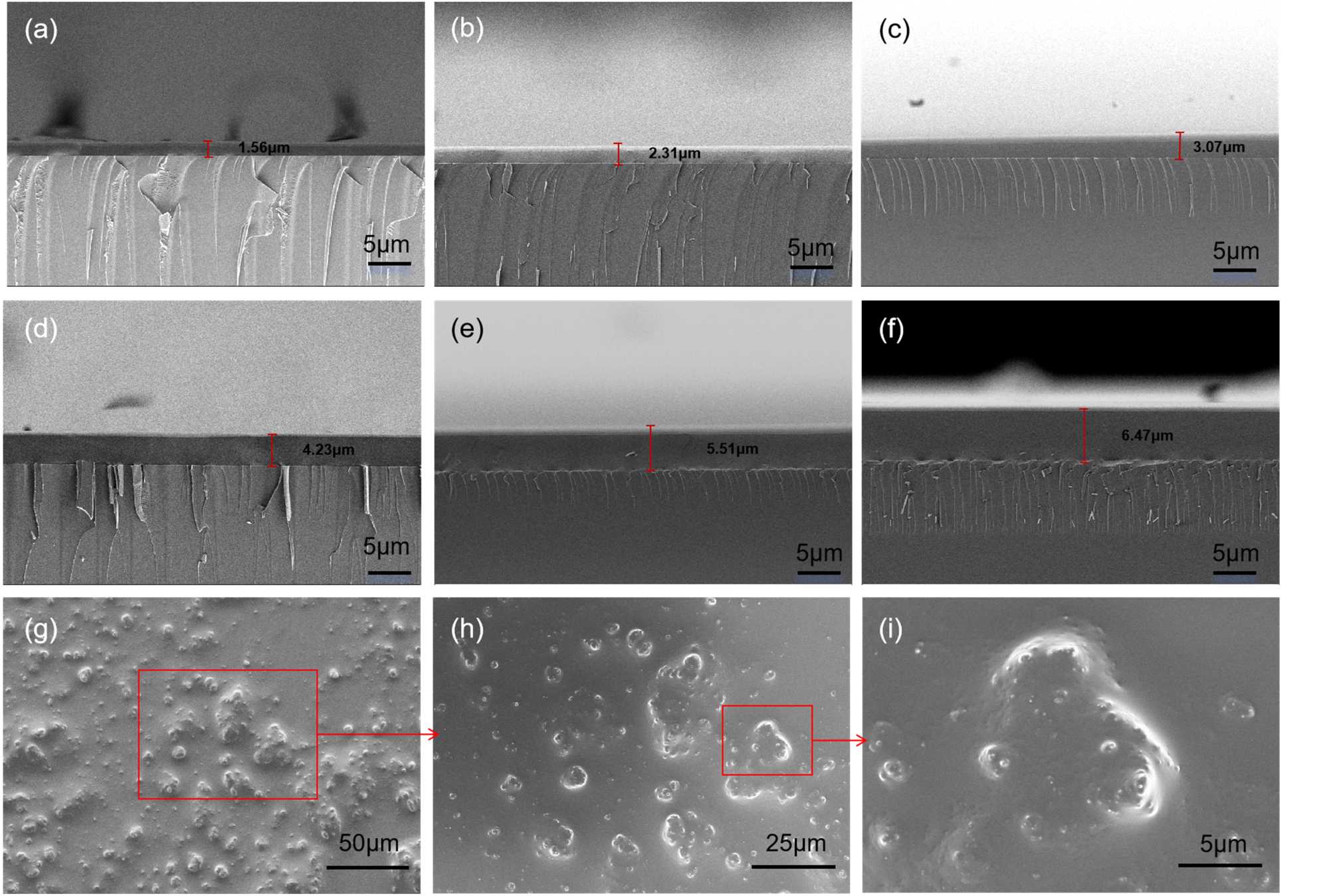

Abstract: This paper reports the preparation of a novel hydrophobic coating, which is formed by a silicon-hydrogen addition reaction between vinyl-terminated polydimethylsiloxane (Vi-PDMS) and poly (dimethylsiloxane-co-methylhydrosiloxane) (PMHS), resulting in a stable three-dimensional crosslinked structure. The physicochemical properties of the coating were systematically analyzed using various characterization techniques, including Fourier transform infrared spectroscopy (FTIR), scanning electron microscopy (SEM), and ultraviolet-visible spectroscopy (UV-Vis). FTIR analysis confirmed the occurrence of the silicon-hydrogen addition reaction by showing changes in the chemical functional groups before and after the reaction. The coating exhibited excellent hydrophobicity with a water contact angle (WCA) of 115.56˚ under optimal conditions. Further wear resistance tests using a Taber abrasion tester showed that the coating could withstand 1400 cycles of abrasion with a CS-10F wheel under a 500 g load, demonstrating excellent wear resistance. Additionally, the chemical stability, adhesion, and high-temperature resistance of the coating were evaluated, revealing its overall superior performance. The developed coating is fluorine-free, possesses strong wear resistance, is environmentally friendly, and can be easily prepared, exhibiting broad potential for practical applications.
文章引用：柯锦城, 刘善堂. 基于有机硅氧烷交联结构的无氟耐磨疏水涂层的研究[J]. 材料科学, 2025, 15(4): 529-540. https://doi.org/10.12677/ms.2025.154058

参考文献

[1] Ogihara, H., Xie, J. and Saji, T. (2013) Factors Determining Wettability of Superhydrophobic Paper Prepared by Spraying Nanoparticle Suspensions. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 434, 35-41. [Google Scholar] [CrossRef]
[2] Cao, M., Guo, D., Yu, C., Li, K., Liu, M. and Jiang, L. (2015) Water-Repellent Properties of Superhydrophobic and Lubricant-Infused “Slippery” Surfaces: A Brief Study on the Functions and Applications. ACS Applied Materials & Interfaces, 8, 3615-3623. [Google Scholar] [CrossRef] [PubMed]
[3] Jiang, T., Guo, Z. and Liu, W. (2015) Biomimetic Superoleophobic Surfaces: Focusing on Their Fabrication and Applications. Journal of Materials Chemistry A, 3, 1811-1827. [Google Scholar] [CrossRef]
[4] Zhang, J., Wang, A. and Seeger, S. (2013) Nepenthes Pitcher Inspired Anti‐Wetting Silicone Nanofilaments Coatings: Preparation, Unique Anti‐Wetting and Self-Cleaning Behaviors. Advanced Functional Materials, 24, 1074-1080. [Google Scholar] [CrossRef]
[5] Xu, X.H., Zhang, Z.Z., Yang, J. and Zhu, X. (2011) Study of the Corrosion Resistance and Loading Capacity of Superhydrophobic Meshes Fabricated by Spraying Method. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 377, 70-75. [Google Scholar] [CrossRef]
[6] Latthe, S.S., Sutar, R.S., Kodag, V.S., Bhosale, A.K., Kumar, A.M., Kumar Sadasivuni, K., et al. (2019) Self-Cleaning Superhydrophobic Coatings: Potential Industrial Applications. Progress in Organic Coatings, 128, 52-58. [Google Scholar] [CrossRef]
[7] 高文, 鲁祥友, 谢远来. 超疏水铜表面的制备及其抑霜性和耐磨性研究[J]. 涂料工业, 2024, 54(12): 65-71.
[8] Xia, X., Liu, J., Liu, Y., Lei, Z., Han, Y., Zheng, Z., et al. (2023) Preparation and Characterization of Biomimetic SiO2-TiO2-PDMS Composite Hydrophobic Coating with Self-Cleaning Properties for Wall Protection Applications. Coatings, 13, Article 224. [Google Scholar] [CrossRef]
[9] Yu, M., Liu, F. and Du, F. (2016) Synthesis and Properties of a Green and Self-Cleaning Hard Protective Coating. Progress in Organic Coatings, 94, 34-40. [Google Scholar] [CrossRef]
[10] Ganta, D., Marry, C., Ma, J. and Sinha, S. (2016) Hydrophobic Recovery in Ultrathin PDMS-Coated Long and Short Silicon Nanowires. Chemical Physics Letters, 647, 175-180. [Google Scholar] [CrossRef]
[11] Du, J., Yuan, H., Xia, H., Kou, H., Zhang, Y., Xing, W., et al. (2022) Improvement of Superhydrophobicity and Durability of EP+PDMS/SiO2 Composite Coatings by Adjusting Laser Curing Powers. Materials Chemistry and Physics, 289, Article 126428. [Google Scholar] [CrossRef]
[12] Wan, Q., Li, H., Zhang, S., Wang, C., Su, S., Long, S., et al. (2019) Combination of Active Behaviors and Passive Structures Contributes to the Cleanliness of Housefly Wing Surfaces: A New Insight for the Design of Cleaning Materials. Colloids and Surfaces B: Biointerfaces, 180, 473-480. [Google Scholar] [CrossRef] [PubMed]
[13] Lin, Y., Xie, Y., Chen, F., Gong, S., Yang, W., Liang, X., et al. (2022) Bioinspired Self-Stratification Fouling Release Silicone Coating with Strong Adhesion to Substrate. Chemical Engineering Journal, 446, Article 137043. [Google Scholar] [CrossRef]
[14] Xu, L.Y., Xie, K.F., Liu, Y.G. and Zhang, C.J. (2021) Stable Super-Hydrophobic and Comfort PDMS-Coated Polyester Fabric. e-Polymers, 21, 654-661. [Google Scholar] [CrossRef]
[15] Xue, X., Sun, B., Wang, B., Ma, B. and Jiang, C. (2019) A Thermoresponsive Film Applicable to Diverse Substrates for Controllable Sessile Droplets Motion. Progress in Organic Coatings, 132, 449-454. [Google Scholar] [CrossRef]
[16] Li, B., Zhang, J., Gao, Z. and Wei, Q. (2016) Semitransparent Superoleophobic Coatings with Low Sliding Angles for Hot Liquids Based on Silica Nanotubes. Journal of Materials Chemistry A, 4, 953-960. [Google Scholar] [CrossRef]
[17] Deng, Z., Wang, W., Mao, L., Wang, C. and Chen, S. (2014) Versatile Superhydrophobic and Photocatalytic Films Generated from TiO2-SiO2@PDMS and Their Applications on Fabrics. Journal of Materials Chemistry A, 2, 4178-4184. [Google Scholar] [CrossRef]
[18] Xue, C., Li, Y., Zhang, P., Ma, J. and Jia, S. (2014) Washable and Wear-Resistant Superhydrophobic Surfaces with Self-Cleaning Property by Chemical Etching of Fibers and Hydrophobization. ACS Applied Materials & Interfaces, 6, 10153-10161. [Google Scholar] [CrossRef] [PubMed]
[19] Wu, D., Wu, S., Chen, Q., Zhang, Y., Yao, J., Yao, X., et al. (2010) Curvature‐Driven Reversible in Situ Switching between Pinned and Roll‐Down Superhydrophobic States for Water Droplet Transportation. Advanced Materials, 23, 545-549. [Google Scholar] [CrossRef] [PubMed]
[20] 李磊, 刘晓玲, 曹磊, 郭光福. 仿生协同防污涂层的制备及性能[J]. 表面技术, 2021, 50(6): 161-168.
[21] 沈可可, 吕晓猛, 贾瑛, 金国锋, 黄远征, 侯若梦, 等. 透明超疏水表面的研究进展[J]. 表面技术, 2021, 50(9): 108-119+127.
[22] 李宗林, 刘杰, 郑楠, 刘军海, 李志洲, 李文戈. 功能型氟硅聚合物涂层的研究进展[J]. 表面技术, 2022, 51(6): 128-137.
[23] 何爽. 耐磨无氟超疏水涂层的制备及研究[D]: [硕士学位论文]. 武汉: 武汉理工大学, 2020.

为你推荐
