卷积神经网络在频域电磁数据反演中的应用
Convolutional Neural Networks for Frequency-Domain Electromagnetic Data Inversion

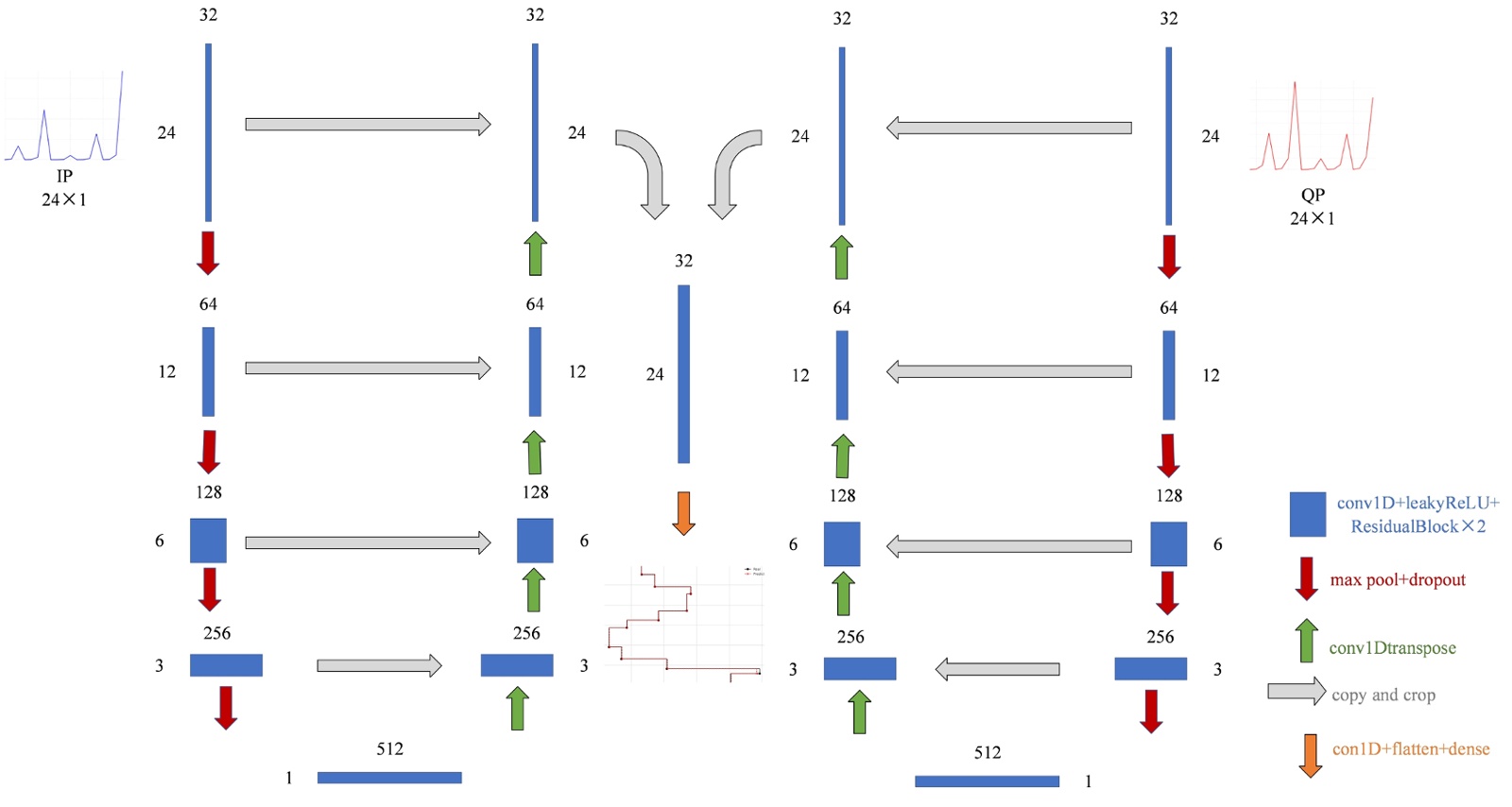

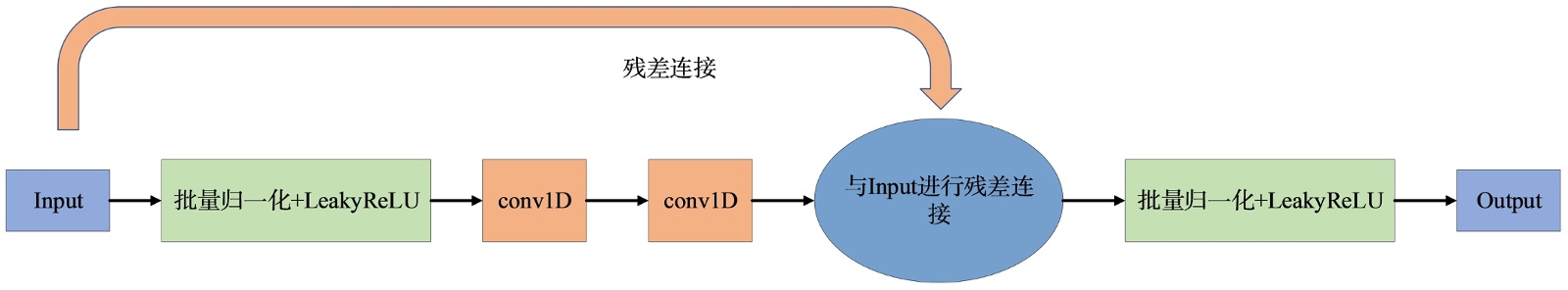

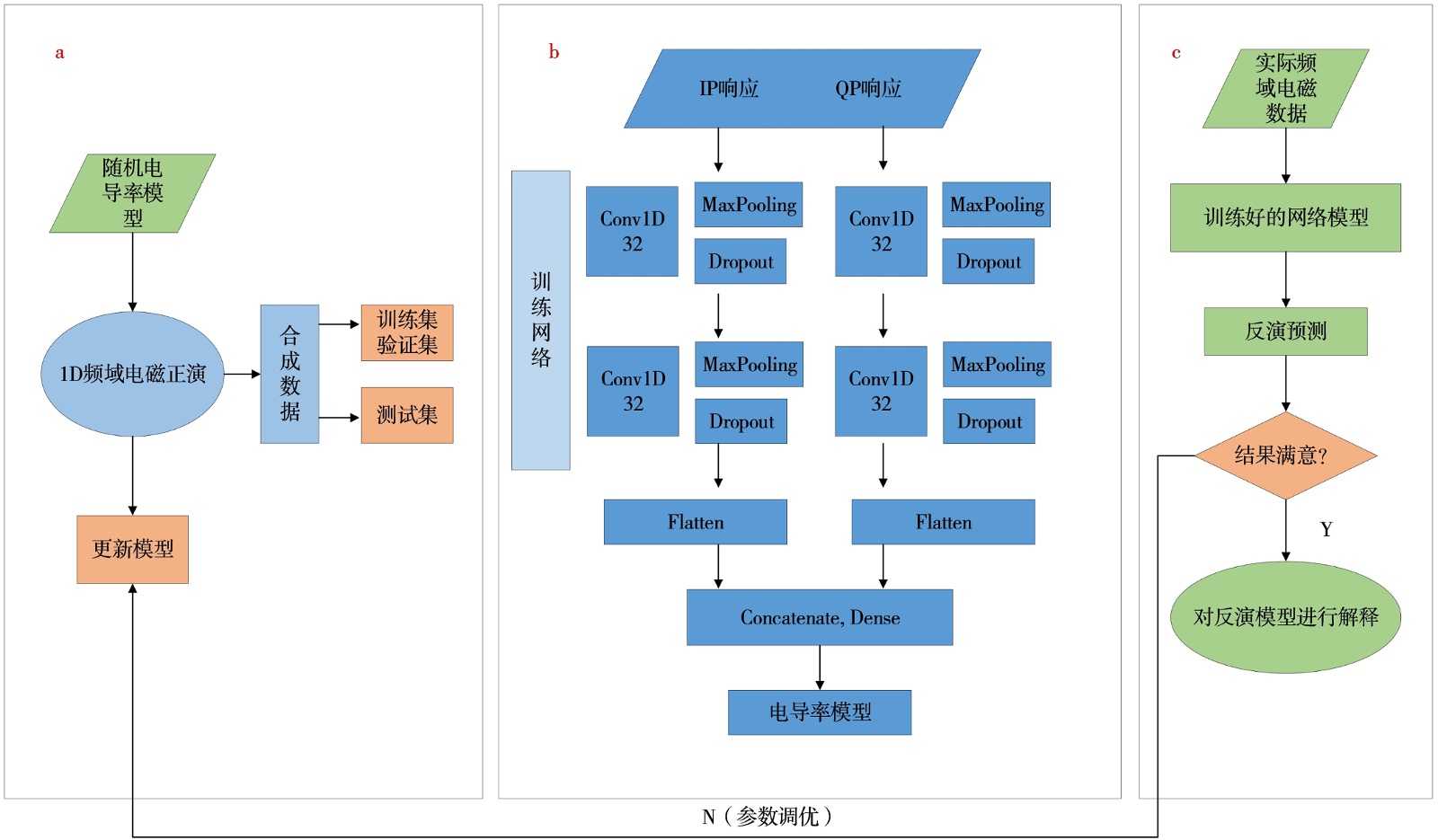

摘要: 频域电磁感应法作为重要的地球物理勘探技术，在地下结构探测中发挥关键作用。然而，传统频域电磁反演方法存在解的非唯一性问题，容易陷入局部极小值，且计算效率低，难以满足现代勘探对高精度、快速反演的需求。为应对这些挑战，提出了基于双分支卷积神经网络架构的深度学习反演方法。该方法通过构建双分支结构同时处理同相位分量和正交分量，实现多维信息并行提取。通过设计自定义残差模块增强特征提取能力，有效解决深层网络梯度消失问题，并优化空间分辨率重建过程改善梯度传播。在含有80000个样本的合成电磁感应数据集上验证表明，相比传统反演方法，该方法反演相关系数从0.67提升至0.99，均方根误差降低83%，在含噪声环境下展现出良好的鲁棒性和泛化能力。研究结果为频域电磁勘探提供了高效可靠的反演技术。
Abstract: Frequency-domain electromagnetic induction serves as an important geophysical exploration technique, playing a crucial role in subsurface structure detection. However, traditional frequency-domain electromagnetic inversion methods suffer from solution non-uniqueness, tendency to fall into local minima, and low computational efficiency, failing to meet modern exploration demands for high-precision, rapid inversion. To address these challenges, a deep learning inversion method based on dual-branch convolutional neural network architecture is proposed. The method constructs dual-branch structures to simultaneously process in-phase and quadrature components, achieving parallel extraction of multi-dimensional information. Through designing custom residual modules, the network enhances feature extraction capabilities, effectively solving gradient vanishing problems in deep networks, and optimizes spatial resolution reconstruction processes to improve gradient propagation. Validation on a large-scale synthetic electromagnetic induction dataset containing 80,000 samples demonstrates that compared with traditional inversion methods, the proposed method improves inversion correlation coefficient from 0.67 to 0.99, reduces root mean square error by 83%, and exhibits excellent robustness and generalization capability under noisy conditions. The research results provide efficient and reliable inversion technology for frequency-domain electromagnetic exploration.
文章引用：方哲祯, 齐兴, 刘海兵. 卷积神经网络在频域电磁数据反演中的应用[J]. 计算机科学与应用, 2026, 16(1): 242-256. https://doi.org/10.12677/csa.2026.161020
