新能源飞机复合材料螺旋桨整流罩组合结构动力学分析
Dynamic Analysis of the Composite Material Propeller Cowling Composite Structures for New Energy Aircraft
DOI: 10.12677/ojav.2026.141002, PDF,
作者: 刘家乐, 宋旭圆：沈阳航空航天大学航空航天工程学部(院)，辽宁 沈阳
关键词: 复合材料桨；人工弹簧；板壳耦合；动力学分析；Composite Propeller Cowling； Artificial Spring； Plate-Shell Coupling； Dynamic Analysis

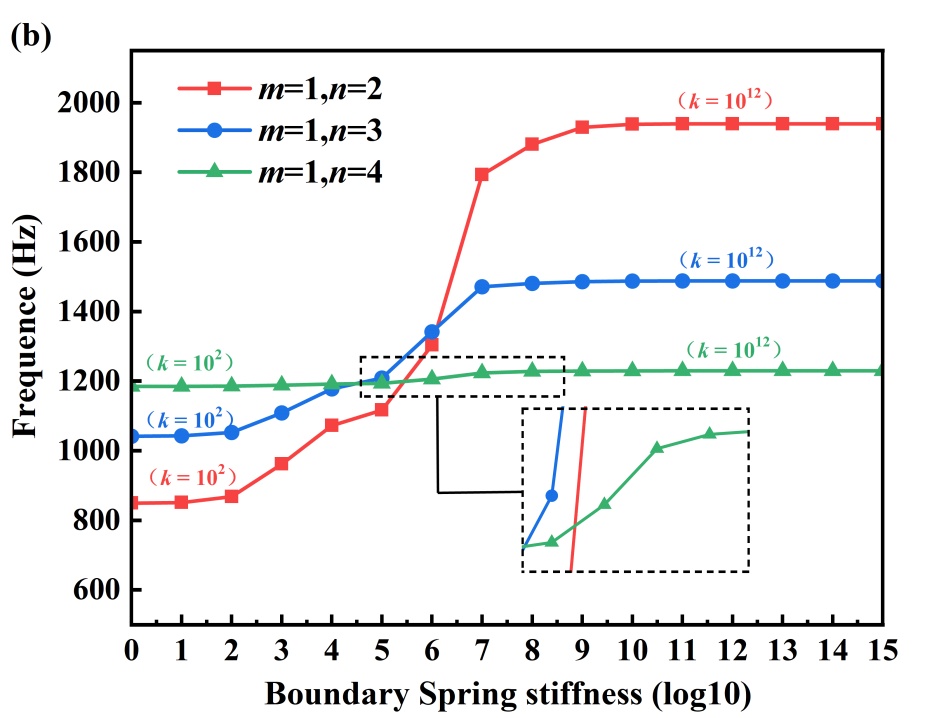

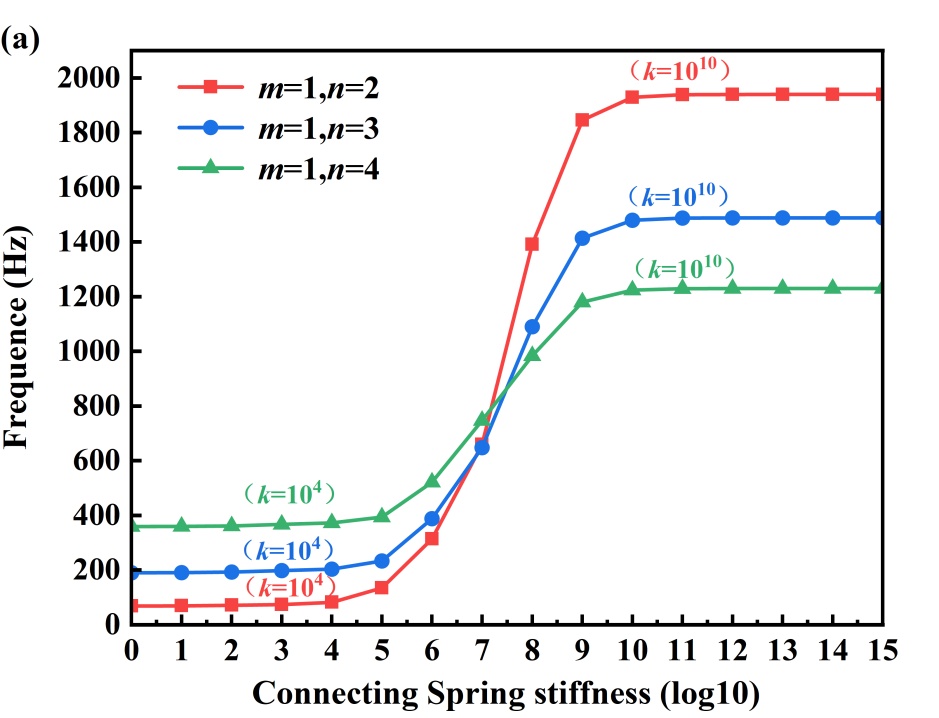

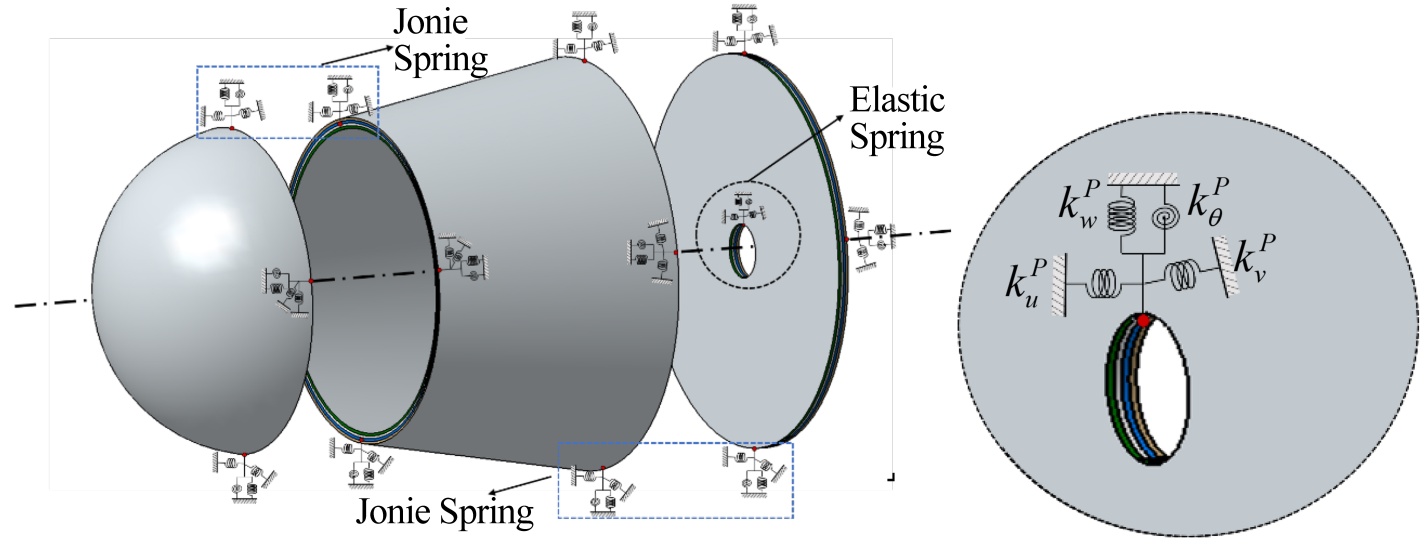

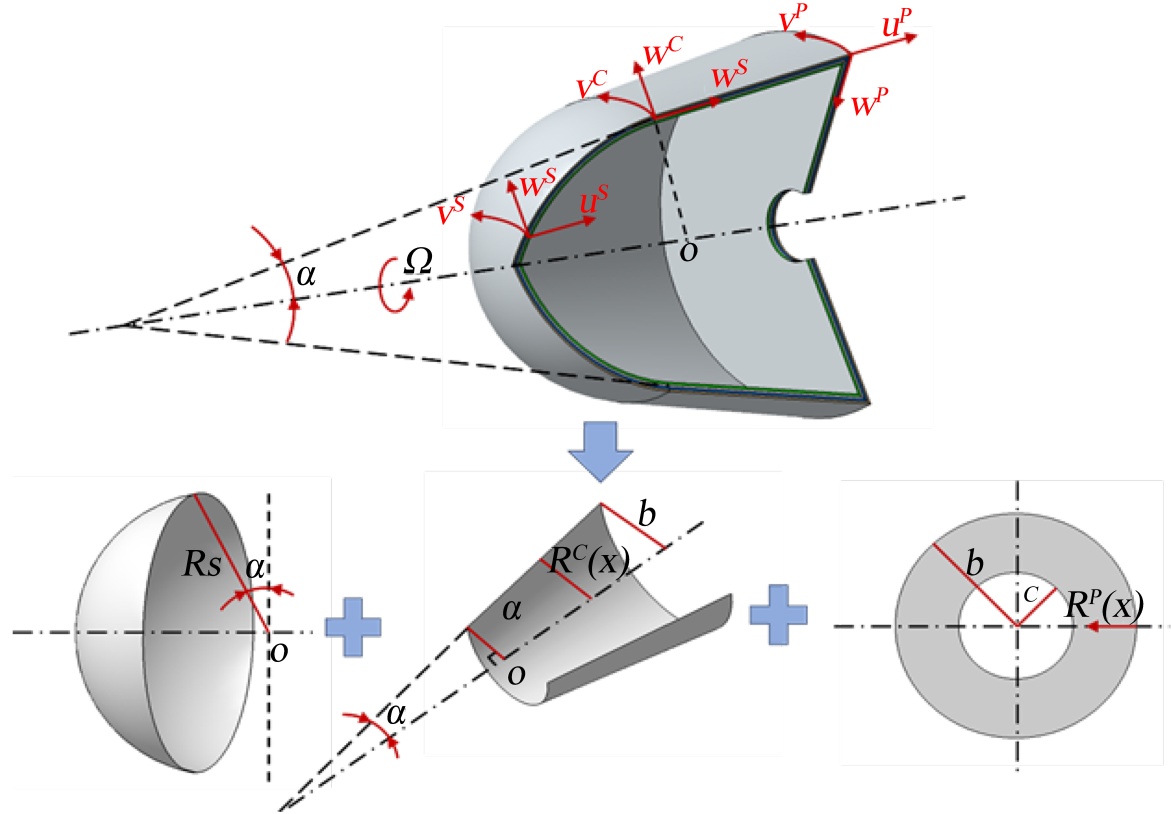

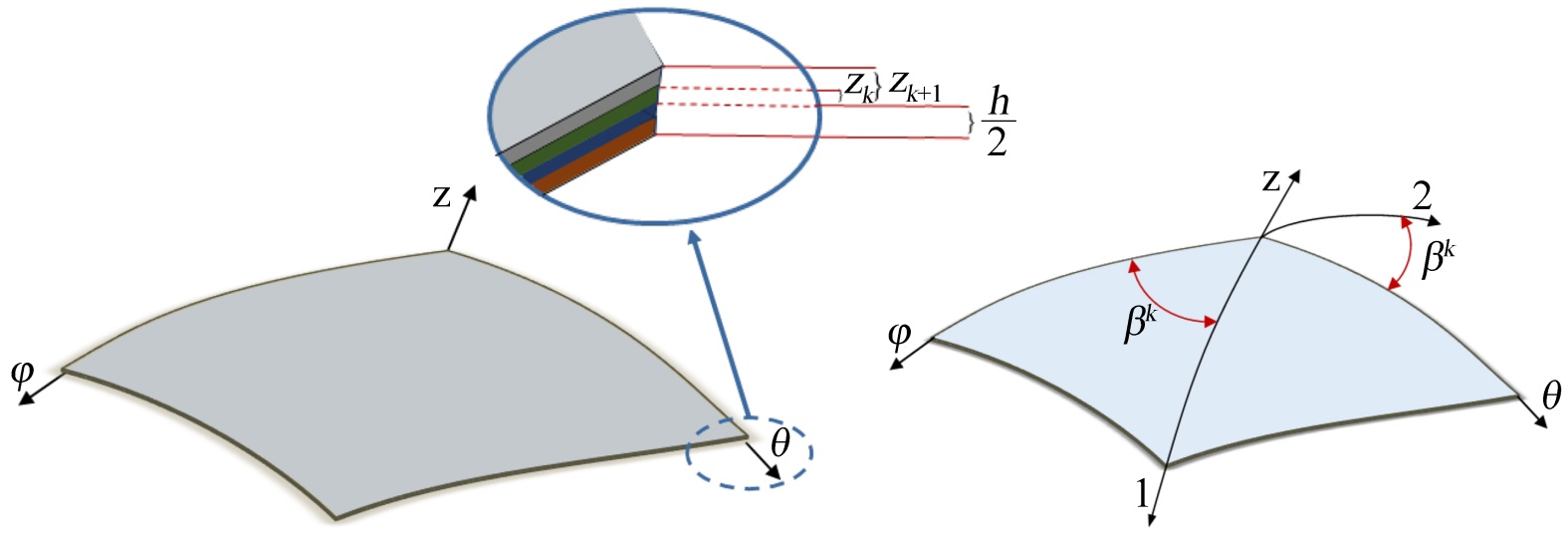

摘要: 本文针对新能源飞机推进系统中复合材料桨罩的动力学分析需求，开展圆球–圆锥–圆盘组合结构(CSCPS)动力学建模的分析研究。基于Donnell壳体理论，建立了该组合结构的能量泛函，其中圆盘的控制方程通过令圆锥壳半顶角取极限导出。采用分布式弹簧技术模拟结构的连接界面与广义边界条件，并应用Rayleigh-Ritz法和Hamilton原理推导出弹性边界下复合材料桨罩组合结构的动力学控制方程。基于参数分析探讨了弹簧刚度对系统固有频率的影响，通过有限元仿真验证了所提建模方法的有效性与计算精度。
Abstract: This paper addresses the needs for dynamic analysis of composite propeller cowling structures in new-energy aircraft propulsion systems, conducting research on the dynamic modeling analysis of combined spherical-conical-plate structures (CSCPS). Based on the Donnell shell theory, the energy functional of the CSCPS is established, with the governing equations for the disk derived by taking the limit of the semi-vertex angle of the conical shell. Distributed spring technology is employed to simulate the connection interfaces and generalized boundary conditions of the structure, while the Rayleigh-Ritz method and Hamilton’s principle are applied to derive the dynamic governing equations of the composite blade casing assembly under elastic boundary conditions. The influence of spring stiffness on the natural frequencies of the system is investigated through parameter analysis, and the effectiveness and computational accuracy of the proposed modeling method are validated via finite element simulations.
文章引用：刘家乐, 宋旭圆. 新能源飞机复合材料螺旋桨整流罩组合结构动力学分析[J]. 声学与振动, 2026, 14(1): 17-28. https://doi.org/10.12677/ojav.2026.141002

参考文献

[1] Ansari, R., Faghih Shojaei, M., Rouhi, H. and Hosseinzadeh, M. (2015) A Novel Variational Numerical Method for Analyzing the Free Vibration of Composite Conical Shells. Applied Mathematical Modelling, 39, 2849-2860. [Google Scholar] [CrossRef]
[2] Mirzaei, M. and Rabiei, R. (2024) On the Free and Forced Vibrations of Porous GPL Reinforced Composite Conical Panels Using a Legendre-Ritz Method. Engineering Analysis with Boundary Elements, 163, 378-393. [Google Scholar] [CrossRef]
[3] Huang, Q., Gao, Y., Hua, F., Fu, W., You, Q., Gao, J., et al. (2023) Free Vibration Analysis of Carbon-Fiber Plain Woven Reinforced Composite Conical-Cylindrical Shell under Thermal Environment with General Boundary Conditions. Composite Structures, 322, Article 117340. [Google Scholar] [CrossRef]
[4] 吴江海, 朱真慧, 胡东森, 等. 基于谱元法的任意边界层合圆柱壳振动特性分析[J]. 振动与冲击, 2025, 44(9): 37-44+108.
[5] Ansari, E., Hemmatnezhad, M. and Taherkhani, A. (2023) Free Vibration Analysis of Grid-Stiffened Composite Truncated Spherical Shells. Thin-Walled Structures, 182, Article 110237. [Google Scholar] [CrossRef]
[6] Zhou, C., Zheng, X., Wang, Z., Xiong, S., Shi, Y. and Li, R. (2022) Benchmark Free Vibration Solutions of Spherical Shells by the State Space Method Incorporating Precise Matrix Exponential Computation. Thin-Walled Structures, 175, Article 109305. [Google Scholar] [CrossRef]
[7] Muc, A., Kubis, S., Bratek, Ł. and Muc-Wierzgoń, M. (2022) Higher Order Theories for the Buckling and Post-Buckling Studies of Shallow Spherical Shells Made of Functionally Graded Materials. Composite Structures, 295, Article 115851. [Google Scholar] [CrossRef]
[8] Evkin, A.Y. (2020) Composite Spherical Shells at Large Deflections. Asymptotic Analysis and Applications. Composite Structures, 233, Article 111577. [Google Scholar] [CrossRef]
[9] 王壮壮, 王腾, 丁艳梅, 等. 基于高阶剪切变形理论的功能梯度板自由振动分析简化模型[J]. 振动工程学报, 2024, 37(3): 384-393.
[10] Shi, X. and Shi, D. (2018) Free and Forced Vibration Analysis of T-Shaped Plates with General Elastic Boundary Supports. Journal of Low Frequency Noise, Vibration and Active Control, 37, 355-372. [Google Scholar] [CrossRef]
[11] Li, Q., Sanchez, J., Benaroya, H., Wang, J. and Xue, K. (2019) Free Vibration Analysis of Moderately Thick Coupled Plates with Elastic Boundary Conditions and Point Supports. International Journal of Structural Stability and Dynamics, 19, Article 1950150. [Google Scholar] [CrossRef]
[12] 吴江海, 段勇, 尹志勇. 层合圆锥壳及组合壳的受迫与自由振动特性分析[J]. 振动工程学报, 2025, 38(11): 2825-2835.
[13] Mirzaei, M. and Kiani, Y. (2015) Thermal Buckling of Temperature Dependent FG-CNT Reinforced Composite Conical Shells. Aerospace Science and Technology, 47, 42-53. [Google Scholar] [CrossRef]
[14] Song, X., Li, H., Zhang, Z., Zang, J., Zhang, Y. and Chen, L. (2024) Vibration of Composite Open Shell of Hydrogen-Electric Fuselage with Rectangular Cutout in Hygrothermal Circumstances: Theoretical and Experimental Research. Thin-Walled Structures, 205, Article 112473. [Google Scholar] [CrossRef]
[15] 伊海铭, 王春旭. 基于幂级数法的环肋圆锥壳振动特性分析[J]. 中国舰船研究, 2023, 18(2): 140-148.
[16] 王威远, 王聪, 邹振祝. 蜂窝锥壳结构动力学特性试验研究[J]. 振动与冲击, 2007(7): 164-168+189.
[17] Cao, J. (2016) Dynamic Modeling and Vibration Suppression Evaluation of Composite Honeycomb Hemispherical Shell with Functional Gradient Protective Coating. Thin-Walled Structures, 202, Article 112066.
[18] Tornabene, F., Fantuzzi, N. and Bacciocchi, M. (2014) Free Vibrations of Free-Form Doubly-Curved Shells Made of Functionally Graded Materials Using Higher-Order Equivalent Single Layer Theories. Composites Part B: Engineering, 67, 490-509. [Google Scholar] [CrossRef]
[19] 李鑫, 陈官峰, 秦秀云, 等. 谐波激励下压气机叶片多模态耦合振动特性研究[J]. 振动与冲击, 2024, 43(5): 338-344.
[20] 龙伦, 李坚, 赵勇铭, 等. 动力传动轴-机匣系统耦合振动特性[J]. 科学技术与工程, 2021, 21(33): 14422-14427.
[21] Viola, E., Rossetti, L., Fantuzzi, N. and Tornabene, F. (2014) Static Analysis of Functionally Graded Conical Shells and Panels Using the Generalized Unconstrained Third Order Theory Coupled with the Stress Recovery. Composite Structures, 112, 44-65. [Google Scholar] [CrossRef]
[22] Qu, Y., Chen, Y., Long, X., Hua, H. and Meng, G. (2013) A Modified Variational Approach for Vibration Analysis of Ring-Stiffened Conical-Cylindrical Shell Combinations. European Journal of Mechanics-A/Solids, 37, 200-215. [Google Scholar] [CrossRef]
[23] Sobhani, E., Arbabian, A., Civalek, Ö. and Avcar, M. (2021) The Free Vibration Analysis of Hybrid Porous Nanocomposite Joined Hemispherical-Cylindrical-Conical Shells. Engineering with Computers, 38, 3125-3152. [Google Scholar] [CrossRef]
[24] Sobhani, E., Masoodi, A.R., Civalek, Ö. and Avcar, M. (2022) Natural Frequency Analysis of FG-GOP/ Polymer Nanocomposite Spheroid and Ellipsoid Doubly Curved Shells Reinforced by Transversely-Isotropic Carbon Fibers. Engineering Analysis with Boundary Elements, 138, 369-389. [Google Scholar] [CrossRef]
[25] Wang, C., Song, X., Zang, J. and Zhang, Y. (2023) Experimental and Theoretical Investigation on Vibration of Laminated Composite Conical-Cylindrical-Combining Shells with Elastic Foundation in Hygrothermal Environment. Composite Structures, 323, Article 117470. [Google Scholar] [CrossRef]
